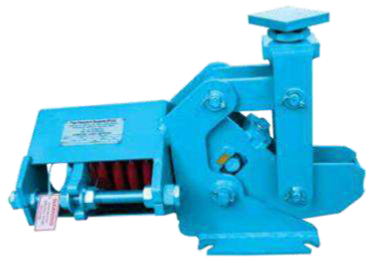

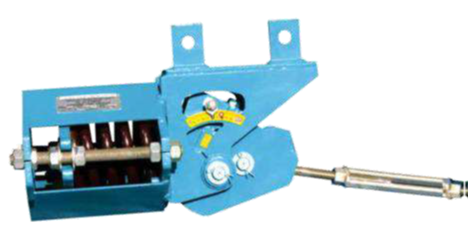

CONSTANT EFFORT SUPPORTS SPRING HANGERS AND SPRING SUPPORTS

CONNECTION COMPONENTS

Designs

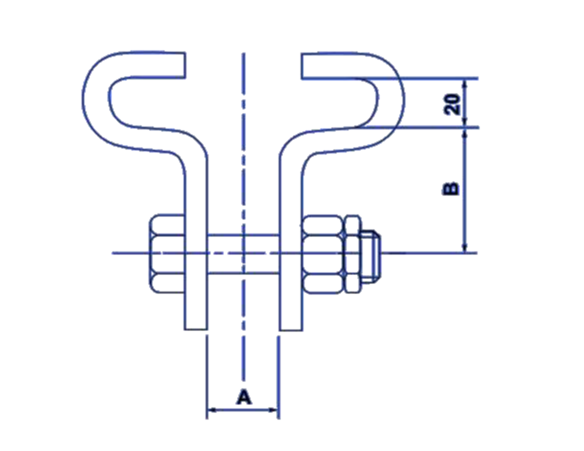

BEAM CLAMP

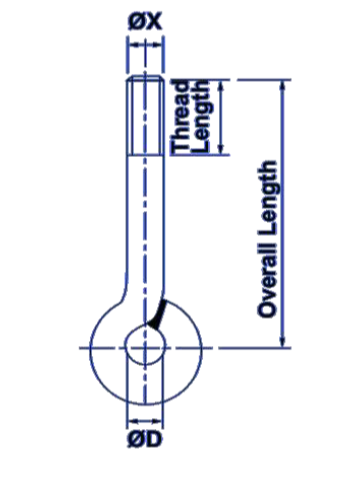

BEND EYE ROD

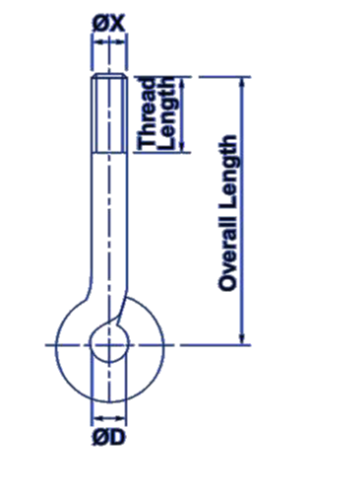

BEND EYE ROD WELDED

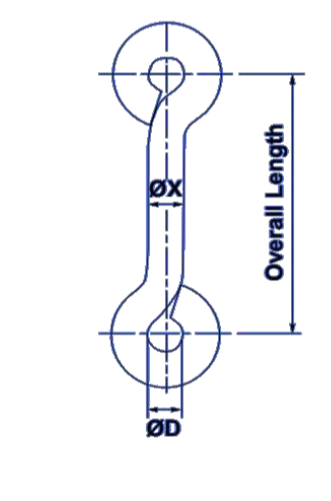

DOUBLE BEND EYE ROD

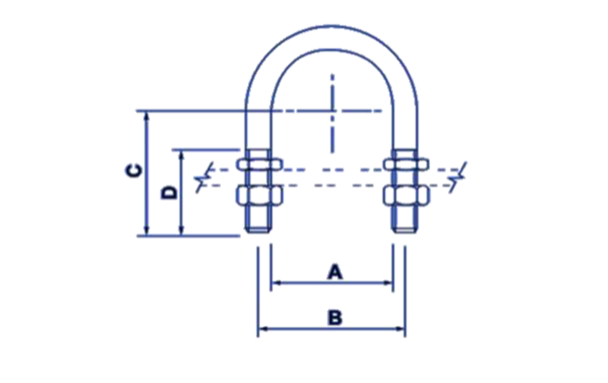

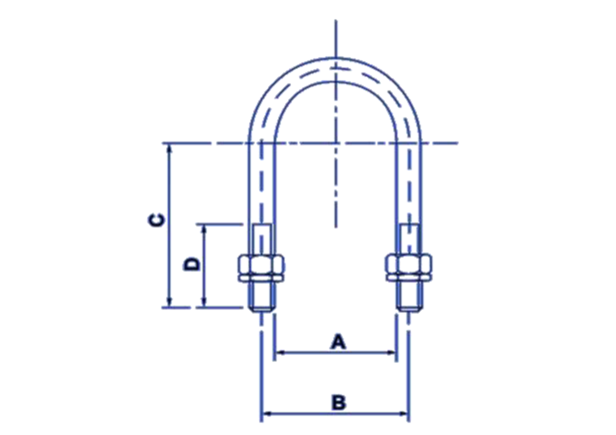

PA9 U BOLT NON GRIP TYPE -20 ˚ C TO 350˚C

PA9 U BOLT NON GRIP TYPE -20 ˚ C TO 350˚C

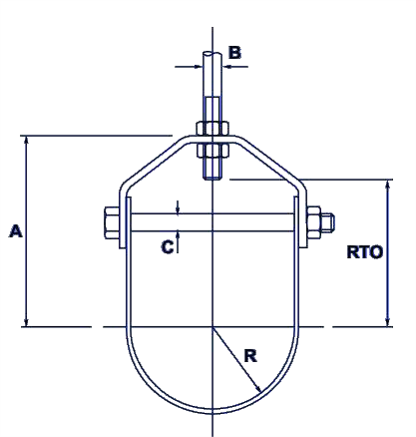

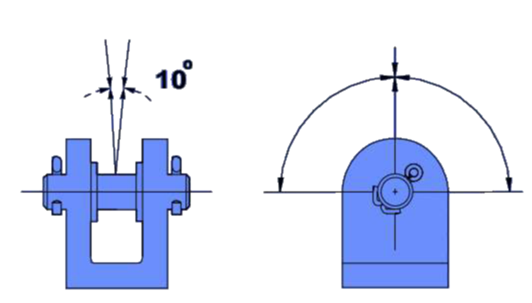

PA10 CLEVIS HANGER -20 ˚ C TO 100˚C

DYNAMIC RESTRAINTS

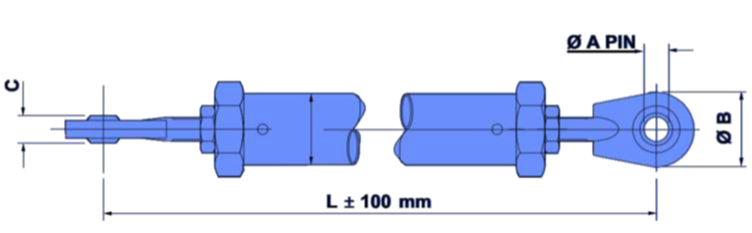

RIGID STRUT AND WELDING CLEVIS

SUPPORT RING INSULATION

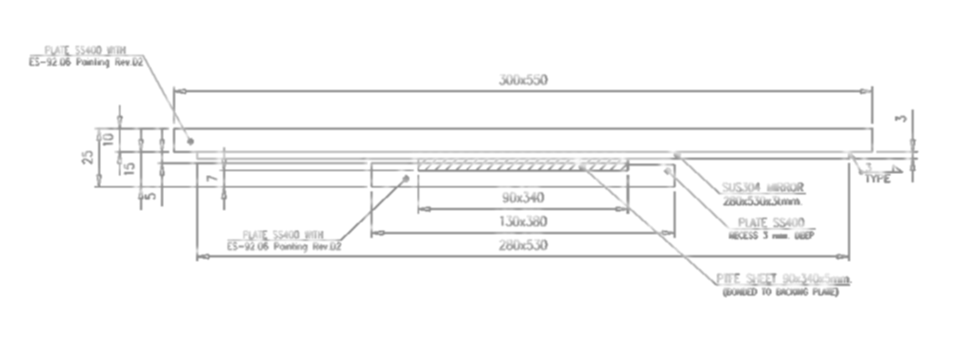

SLIDE PLATE

DIMENSION

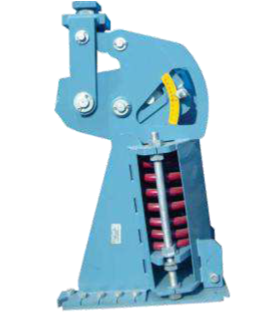

VIBRATION EFFORT SUPPORT

The current expanded range of variable effort supports are designed keeping in mind the space constraints imposed by modern industrial complexes generating power, Refining petroleum products and off shore rigs. The design lends itself to application of high performance paints which are being increasingly specified by clients who are conscious of degradation & corrosion due to process and environmental conditions.

APPLICATION

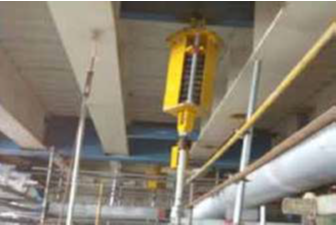

Pipe lines constructed of steel will expand along its axis by an amount equal to its co-eff of thermal expansion when carrying hot or cold fluids. The pipe lines when suspended from Variable effort supports will allow this thermal expansion or contraction relative to structure and at the same time support the weight of the pipe to prevent sagging.

VIBRATION EFFORT SUPPORT

RANGE

Pipe Hanger & Supports offer a wide range of Variable effort supports right from 3.43 Kgs to 39120 Kgs spread across several travel, load & support configuration types Available in the following variation

WORKING RANGES

VS1- 35mm
VS2-70mm
VS3-140mm
VS4-210mm
VS5-280mm
With 29 spring sizes (Size 1 to Size 29) within each travel
range. Newly introduced High load variable series to cater for
large loads using multi -coil configuration:
VS1- 35mm
VS2-70mm
VS3-140mm
With 7 spring sizes ( Size H1 to H7) within each travel range.

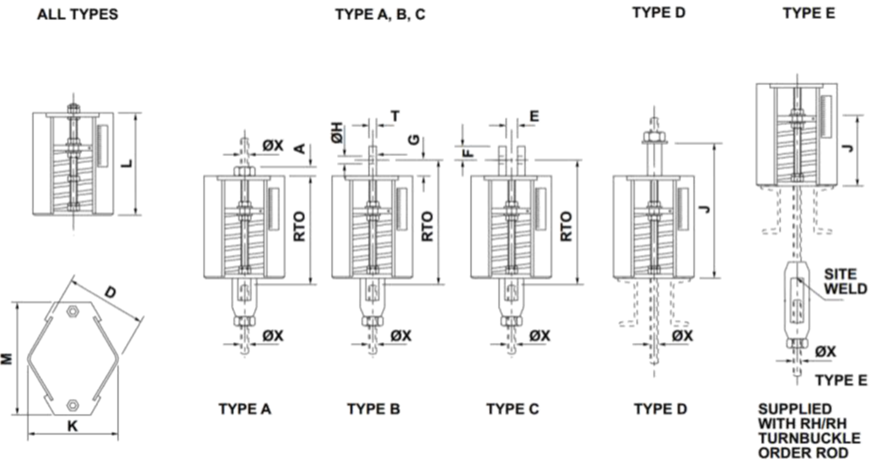

SUPPORT TYPES

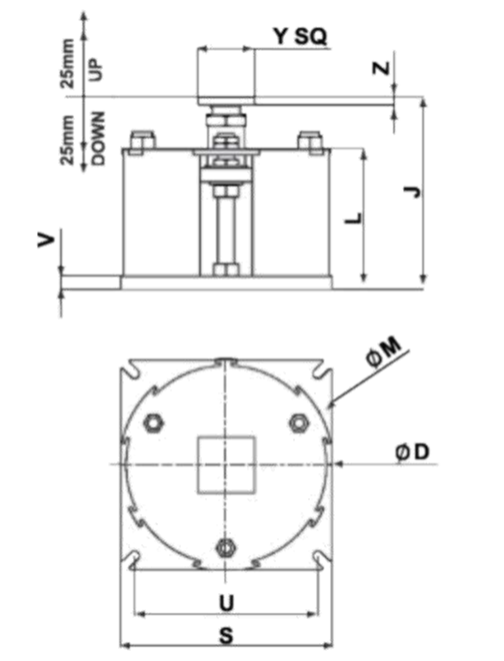

A, B, C     Top Supported
D      Top Adjustable

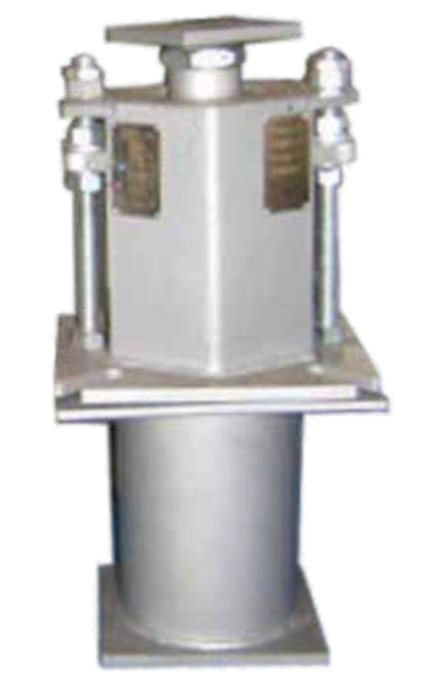

E      Extended Support

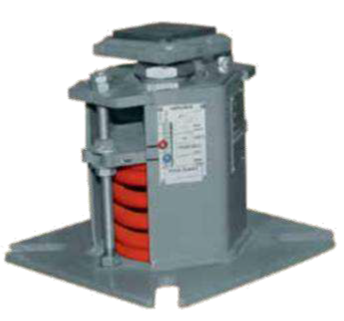

F      Base mounted
G      Trapeze type double

RELATED SPECIFICATIONS

The Pipe Hangers & Supports range of Variable Effort Supports are designed and manufactured to meet the requirements of the following

SPECIFICATIONS

BS3974 ANSI / ASME B31.1 / ANSI / ASME B31.3 ANSI / MSS SP-58 / ANSI / MSS SP69

INSTALLATION AND ERECTION

Please refer the exhaustive Erection / Commissioning manual for details. This is supplied free of cost along with every dispatch. This manual is also available as a free download from our web site www.pipehangers.in.

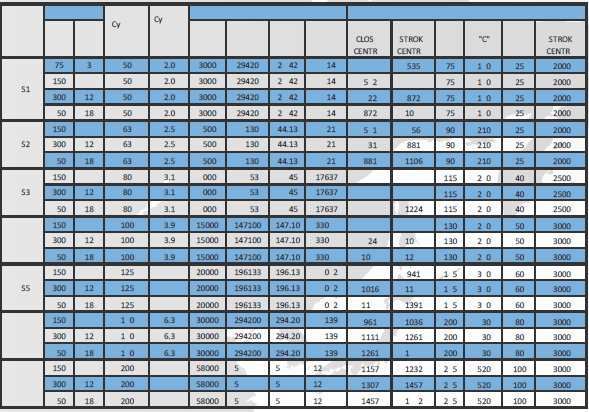

RANGE VS1

VIBRATION EFFORT SUPPORT

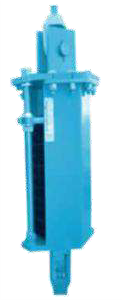

HIGH LOAD VARIABLES

Dynamic Support Systems Ltd. Assembly Configuration

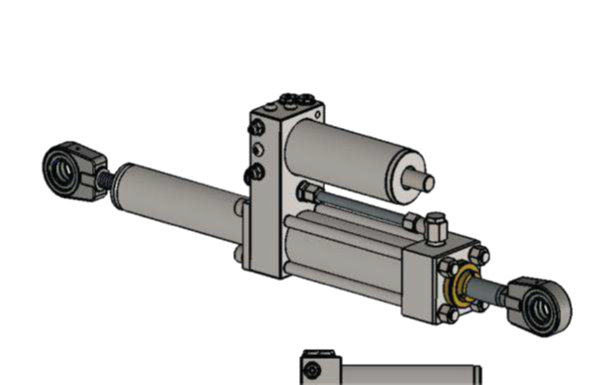

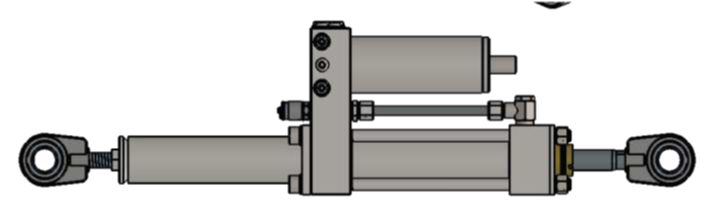

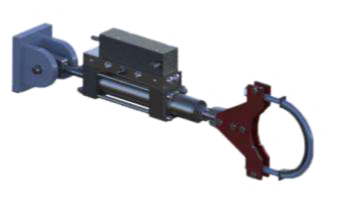

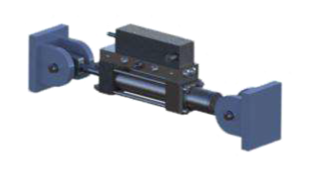

Our hydraulic snubbers and rigid struts are available in the following assembly configurations. A data sheet/design drawing will be issued reflecting the appropriate assembly configuration along with the design parameters

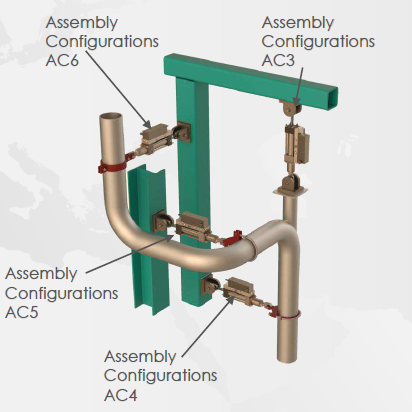

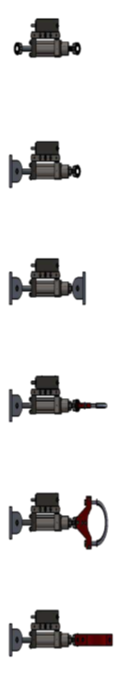

AC1




AC1




AC1



AC1



AC1



AC1

AC1

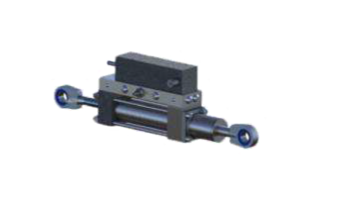

DSS hydraulic snubber or rigid strut.

AC2

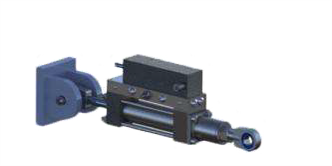

DSS hydraulic snubber or rigid strut with 1No structural attachment.
AC3
DSS hydraulic snubber or rigid strut with 2No structural attachments.
AC4
DSS hydraulic snubber or rigid strut with 1No structural attachment & 1No DYC clamp
AC5
DSS hydraulic snubber or rigid strut with 1No structural attachment & 1No DYC clamp
AC6

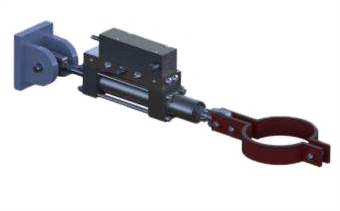

DSS hydraulic snubber or rigid strut with 1No structural attachment & 1No PC-03 or PC-04 pipe clamp
